Coated Overlay Film With HICO Magnetic Strip Manufacturers, Suppliers, Factory - huisenyuan
- model: 86-189-544-43606

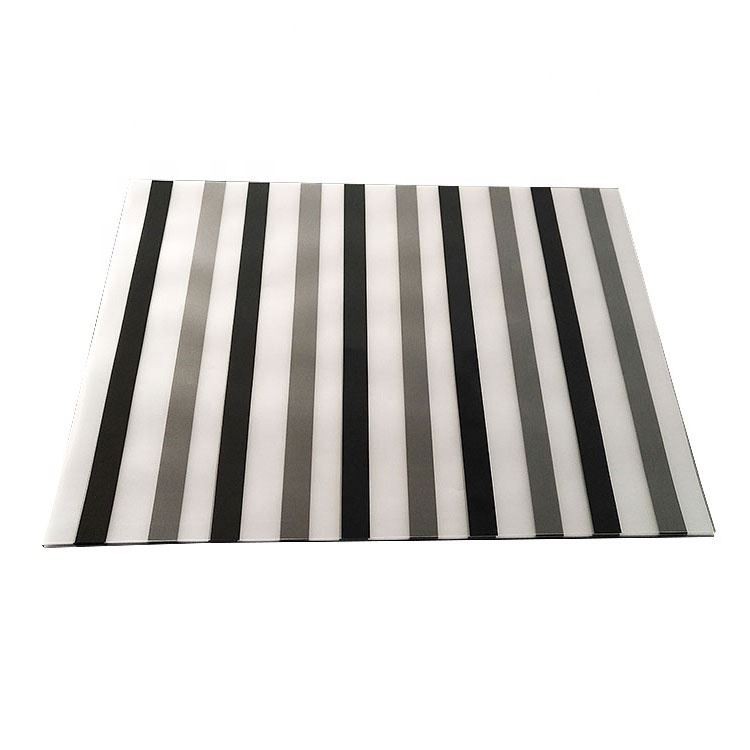

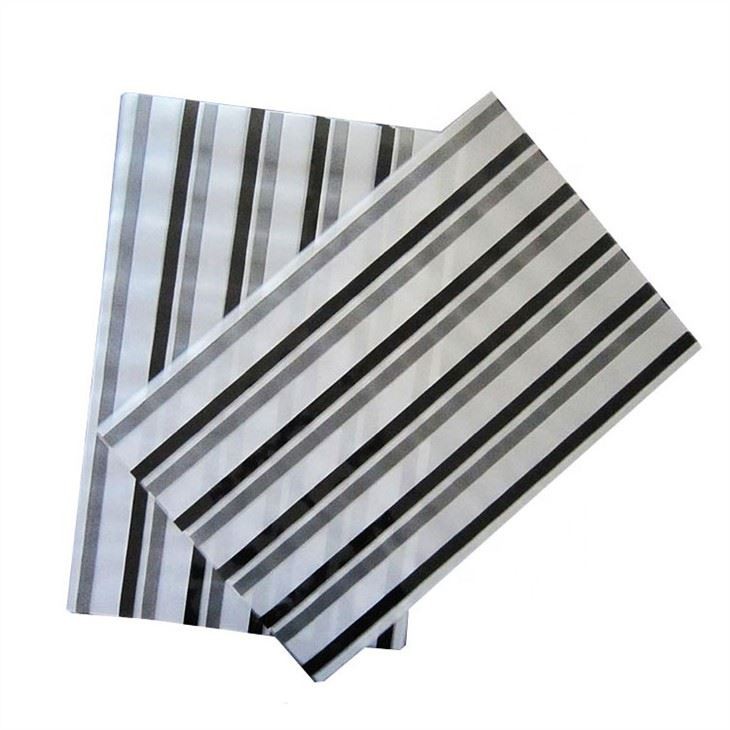

Product name | PVC Coated overlay with Hico magnetic stripe |
Common size | A4, 210x297mm |
Thickness | 0.08mm |
Appearance | transparent |
Coated | with glue on back |
Laminating temperature | 120-140℃ |
Storage | -10~35℃, sealed, moisture-proof |
Technical note:
In manufacturing process, it can be directly laminated with PVC printing sheet, simplify the fabrication process, save time, adhesive strength is high.

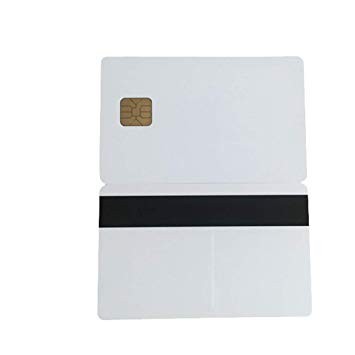

Steps to make cards:
1.Put printing core and two overlays together, then put into the laminator.(the laminating temperature and time is determined as per the instruction of the machine).Please be noticed that all glue sides of both PVC sheets and Overlays are put inward.
2.Tlamination lasts 10-15 minutes. The pressure is 6-8Mpa.The temperature is 120-140°C. 3.Cutting the card.
