PETG Polycarbonate Cards Film Manufacturers, Suppliers, Factory - huisenyuan
- model: 86-189-544-43606
Product Details:
We are professional PETG Polycarbonate Card film Manufacturer ,our technical director is the R&D frist
person in China.
We can supply PETG inlay white core mate-mate.
PETG polycarbonate spacer sheet mate-velvet
PETG Polycarbonate offset printing mate-velvet
PETG Polycarbonate laser engraving mate-velvet
PETG Polycarbonate overlay(CLI/MLI) transparent
Type: TH832w Thickness 0.15-0.50mm Width 1000-1240mm Sheet size :590*505mm 600*510mm 297*420mm 295x365mm 325*480mm 210*297mm
Type:TH832y Thickness 0.10-0.15mm Width 1000-1200mm Sheet size 590*505mm 600*510mm 297*420mm 295x365mm 325*480mm 210*297mm
Type TH832 Thickness 0.05-0.10mm Width 970-1100mm Sheet size Sheet size 590*505mm 600*510mm 297*420mm 295x365mm 325*480mm 210*297mm
Type:TH832j Thickness 0.05-0.10mm Sheet size Sheet size 590*505mm 600*510mm 297*420mm 295x365mm 325*480mm 210*297mm
Advantage:
Low temperature High wear resistance low contractility, high flatness optimization of surface texture and can be used for printing, hot stamping and laminated excellent tolerance control, easy to control the thickness High school performance Extreme excellence.
特性 (Property) | 测试方法 (Test Methods) | 单位 (Units) | 测试值 (Value) |
物理性(Physical) | |||
比重(Density) | ASTM D792 | G/cm3 | 1.22 |
平均吸水率 (Water Absorption Equilibrium) | ASTM D570 | % | 0.35 |
机械性 (Mechanical) | |||
伸张强度 (Tensile Strength) | ASTM D882 | Psi | 9,800 |
ISO R1184-1987 | Mpa | 165 | |
极限延伸率 (Elongation) | ASTM D882 | % | >155 |
冲击强度 | JIS-k6745 | In-ibs | 150 |
撕裂强度 (Tear Strength) | ASTM D1922 | G/mil | >65 |
耐温性 (Thermal) | |||
维卡软化点 (Vicat softening temperature) | ASTM D1525 | ℃ | 148 |
热收缩率 (Heat Shrinkage Rate) | ASTM D1204 | % | <0.5 |
电气性 (Electrical) | |||
介电强度 (Dielectric Strength) | ASTM D149 | V/mil | 1700 |
体积绝缘 (Volume Resistivity) | ASTM D257 | Ohm.m | 1016 |
表面绝缘 (Surface Resistivity) | ASTM D257 | Ohm | 1015 |
绝缘性( Flammability) | |||
UL-94 | E249605 | V-2 | |
厚度公差 (Thickness Tolerance) | % | ＞0.5 ±0.006mm ≦0.5 ±0.004mm |
Application:

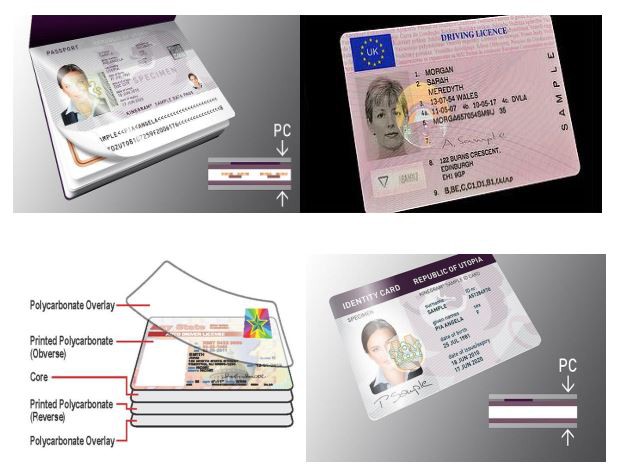

3 layer ,5 layers 7 layers
Residence permits
Civil servant cards
Military cards
Police cards
Driving licence
ID cards

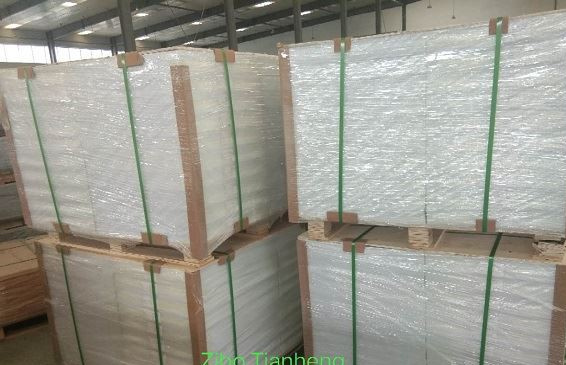

Packaging Term:
One package 150 PCS, 200 PCS ,300 PCS
PE bag +Carton box +Pallet
