Products Description

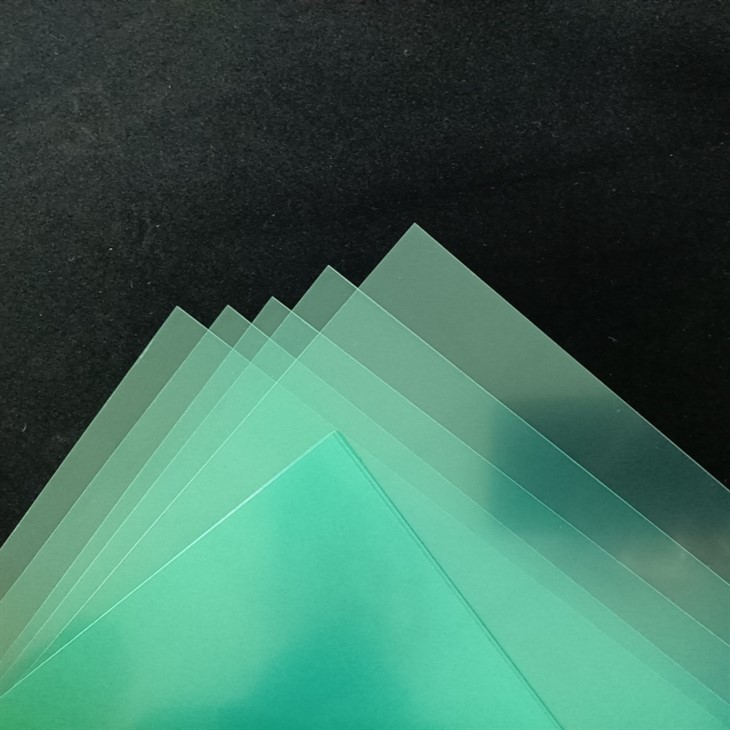

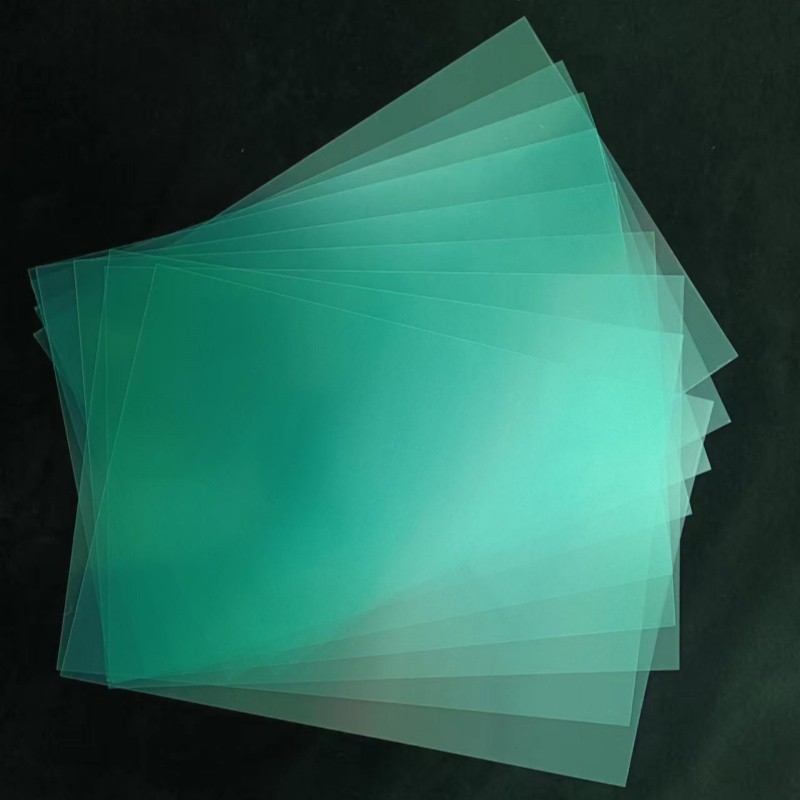

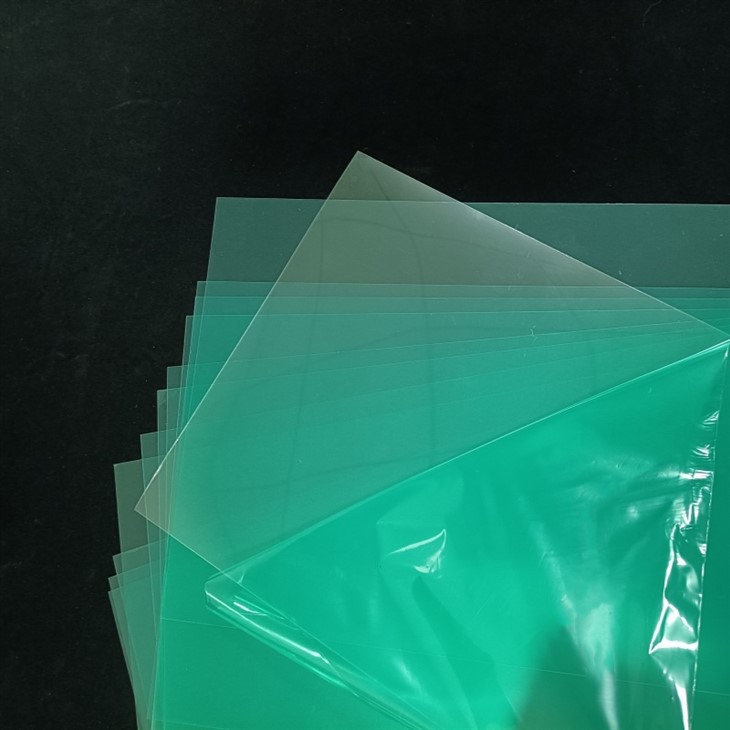

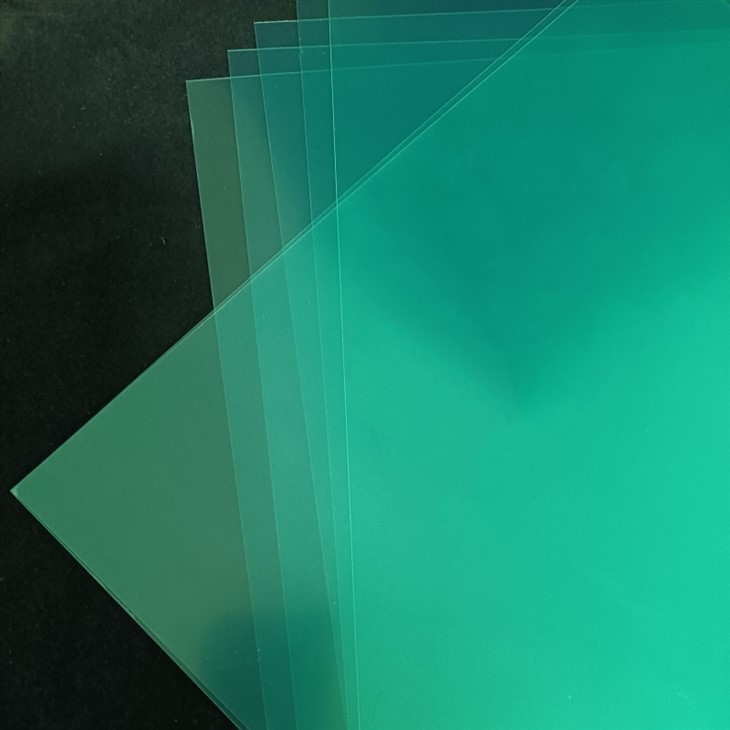

Transparent polycarbonate film (SY811)with the properties of high-definition transparency, durable compression resistance, elevated dimensional stability, exceptional printing capabilities, easy to process, and mold versatility. Widely used in electronic field, including membrane switches, control panels, nameplates, masks, and instrument panels, nameplates, displays, toy models, helmets etc.
Product specification(in roll and in sheet)
|
Item |
Color |
Texture |
Thickness(micron) |
W*L |
Kg/Roll |
Qty/pallet |
|
SY811 (ROLL) |
Transparent |
gloss/gloss |
100 |
930mm*500m |
55.8kg |
6 rolls |
|
125 |
930mm*400m |
55.8kg |
6 rolls |
|||
|
175 |
930mm*350m |
68.4kg |
6 rolls |
|||
|
250 |
930mm*300m |
83.7kg |
6 rolls |
|||
|
300 |
930mm*250m |
83.7kg |
6 rolls |
|||
|
375 |
930mm*200m |
83.7kg |
6 rolls |
|||
|
500 |
930mm*150m |
83.7kg |
6 rolls |
|
Item |
Color |
Texture |
Thickness(micron) |
W*L |
Kg/Roll |
Qty/pallet |
|
SY811 (Sheet) |
Transparent |
gloss/gloss |
500 |
915mm*1830mm |
1.0kg |
600pcs |
|
650 |
915mm*1830mm |
1.3kg |
400pcs |
|||
|
700 |
915mm*1830mm |
1.4 kg |
400pcs |
|||
|
800 |
915mm*1830mm |
1.6kg |
375pcs |
|||
|
1000 |
915mm*1830mm |
2.0 kg |
300pcs |
|||
|
1200 |
915mm*1830mm |
2.4kg |
300pc |
|||
|
1500 |
915mm*1830mm |
3.0kg |
300pc |
Technical data sheet
Packing details
Packed by cartons and pallet(in roll), craft paper and pallet(in sheet)
FAQ
Q1: What is transparent polycarbonate film?

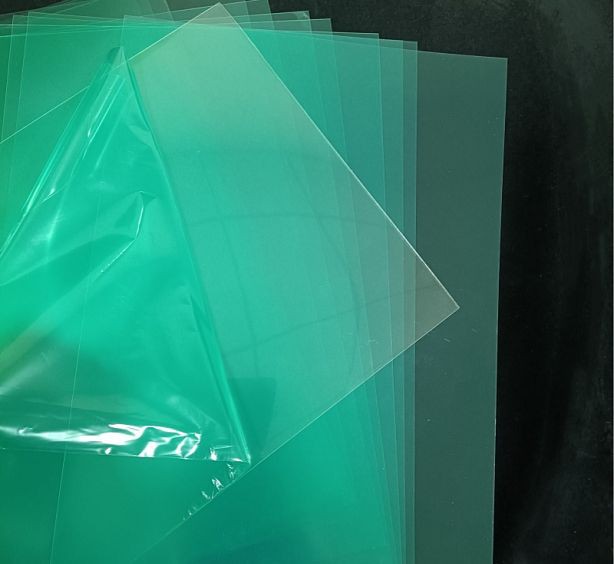

A1: It is a thin, clear sheet made from polycarbonate, both side with green or white protective films, a durable and transparent thermoplastic material. It is known for its high impact resistance, optical clarity, and versatility.
Q2: Can transparent polycarbonate film be printed on or customized?
A2: Yes, transparent polycarbonate film can be printed on using various printing methods such as screen printing, digital printing, or UV printing. It is also possible to cut, shape, and mold the film for specific applications.
Q3: How does transparent polycarbonate film differ from other transparent materials?
A3: Compared to materials like glass or acrylic, transparent polycarbonate film offers superior impact resistance and is less prone to shattering. It also has better flexibility and can be easily formed into different shapes.
Q4: Can I get the samples of pc films?
A4: yes, A4 sizes are free for you, you only pay the shipping cost. We will arrange the samples to ship during 1-3days.
