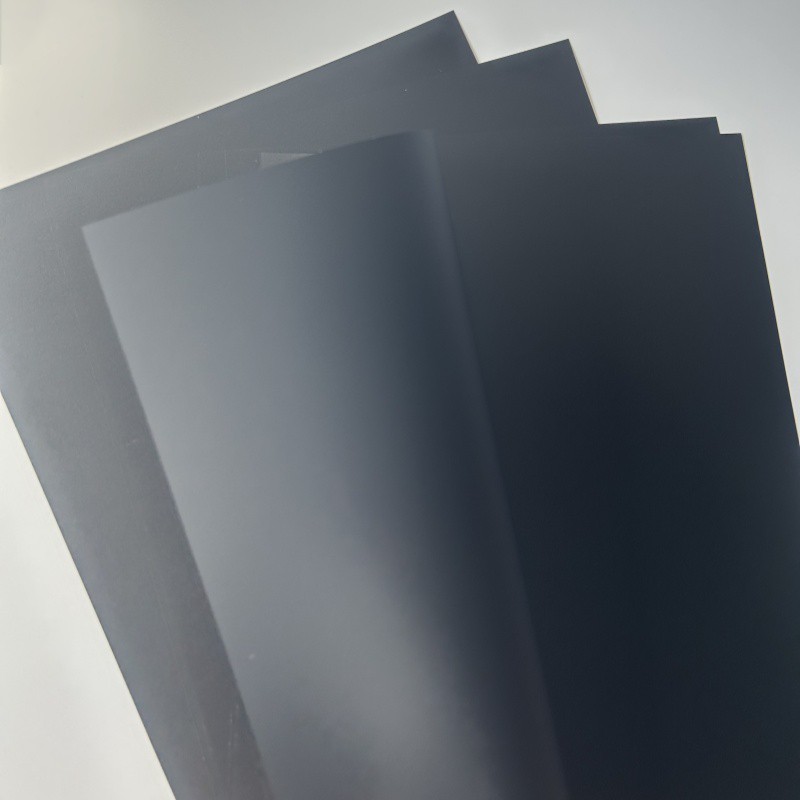

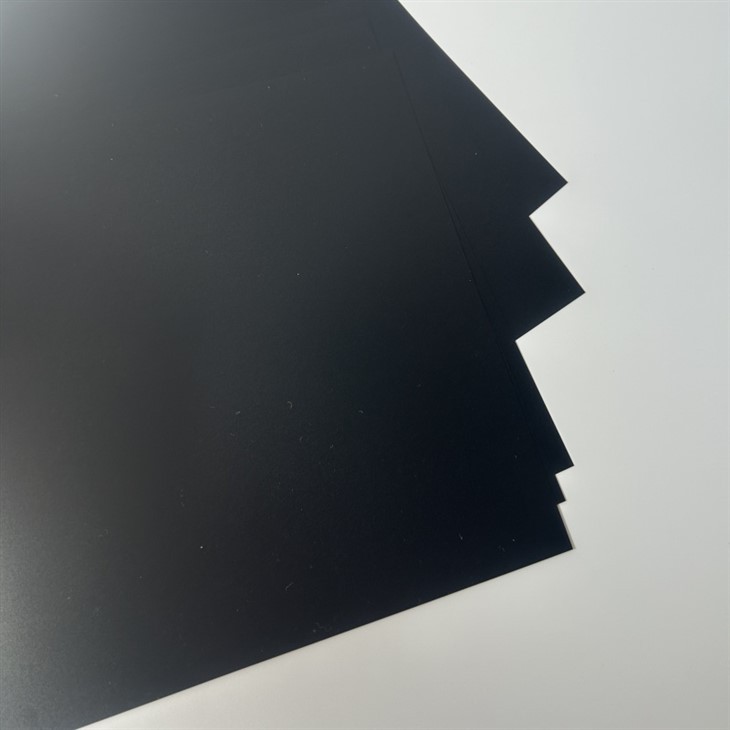

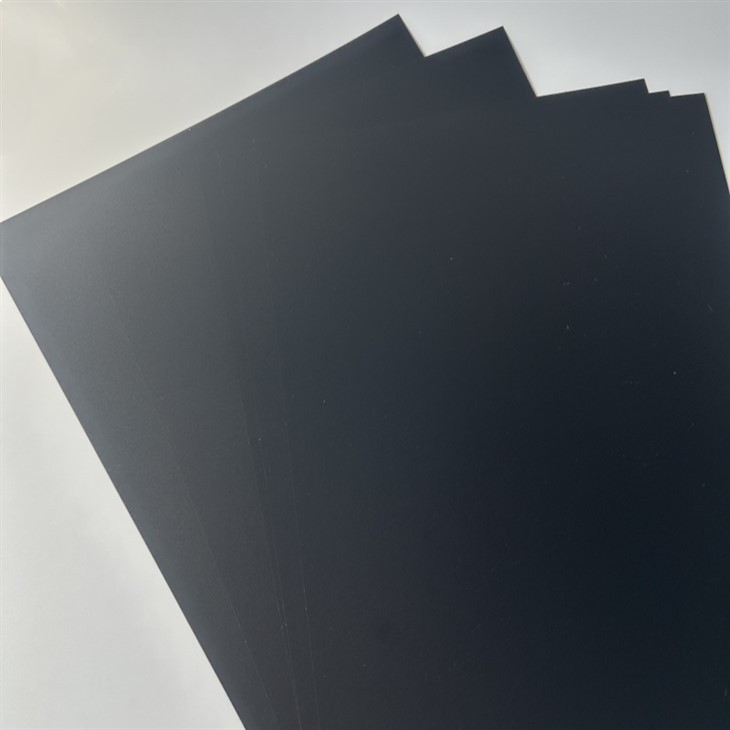

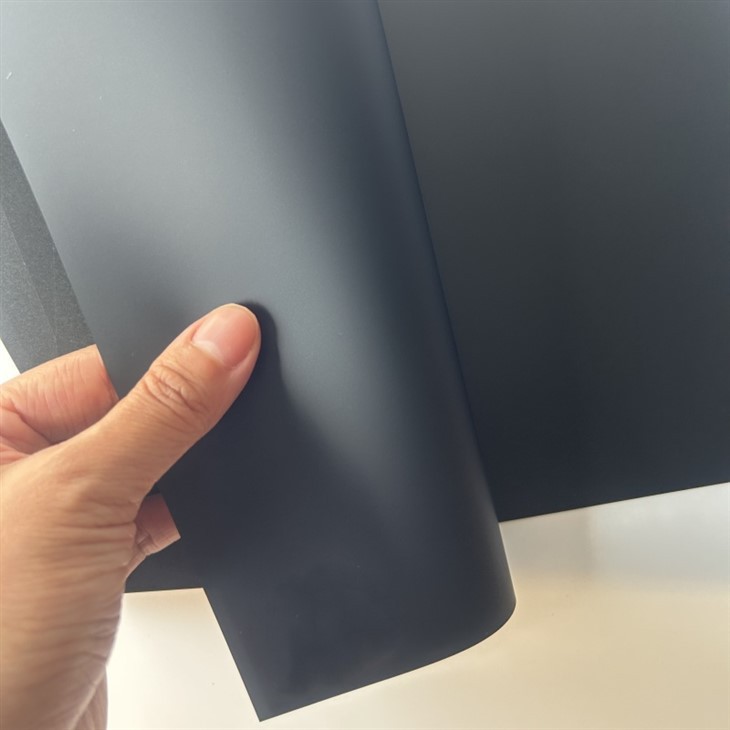

Products Description
|
Product Name |
Insulation polycarbonate film |
|
Surface |
Velvet/matte, fine velvet/matte |
|
Color |
Black, transparent |
|
Thickness |
0.05~1.0mm |
|
Type |
In roll or in sheet |
|
Size |
Width: 930mm or 915mm |
|
Density |
1.2g/ cm³ |
|
Vicat softening temperature |
135℃ |
Application
Electronics and Electrical Components:
Insulation polycarbonate film is widely used in the electronics industry as an insulating material for various components, including printed circuit boards (PCBs), electrical connectors, and insulating layers within electronic devices.
Battery Systems:
In the field of energy storage, insulating polycarbonate film plays a crucial role in batteries. It is employed as an insulating layer between battery cells and modules, preventing electrical conduction and ensuring the safety and efficiency of the battery system.
Electrical Motors and Transformers:
Insulation PC film is used in the production of electrical motors and transformers to provide insulation between different winding layers. This application helps prevent short circuits and ensures the reliable performance of these critical components.
Properties of insulation polycarbonate film
|
TYPICAL PROPERTY VALUES |
||||
|
PROPERTY |
Test Method |
Units |
Value |
|
|
PHYSICAL |
||||
|
Specific Gravity |
ASTM D792 |
g/cm3 |
1.2 |
|
|
Water Absorption Equilibrium, 24 Hrs |
ASTM D570 |
% |
0.35 |
|
|
MECHANICAL |
||||
|
Tensile Strength |
ASTM D882 |
psi |
8,800 |
|
|
ISO R1184-1987 |
Mpa |
60 |
||
|
Elongation Ultimate |
ASTM D882 |
% |
>90 |
|
|
Impact Strength @ 10mils |
JIS-k6745 |
In- ibs |
120 |
|
|
Tear Strength Propagation |
ASTM D1922 |
g/mil |
>30 |
|
|
HEAT RESISTANCE |
||||
|
Vicat Softening Temperature |
ASTM D1525 |
℃ |
135 |
|
|
Heat Shrinkage Rate |
ASTM D1204 |
% |
＜0.2 |
|
|
ELECTRICAL |
||||
|
Dielectric Strength(@ 10 mils) |
ASTM D149 |
V/mil |
1,700 |
|
|
Volume Resistivity @25℃,50％RH |
ASTM D257 |
Ohm-cm |
1016 |
|
|
Surface Resistivity @25℃,50％RH |
ASTM D257 |
Ohm-cm |
1015 |
|
|
FLAMMABILITY |
||||
|
UL Flammability |
UL BULLETIN 94 |
|||
|
TY95 (0.05-0.2)mm |
UL94 |
VTM-0 |
||
|
TY71 (0.25/0.38/0.43/0.5/0.76/1.0)mm |
UL94 |
V0 |
||
|
OXYGEN INDEX @ 10MILS |
ASTM D2863 |
% |
32 |
|
|
Traits |
Unit |
Ultimate value |
||
|
Thickness tolerance |
% |
﹤0.5mm±5% |
||
|
≥0.5mm±3% |
||||
|
Storage temperature |
℃ |
Temperature 20±10℃ moisture 50%±10℃ |
||
|
The validity time of storage |
No change in 9 months |
|||
