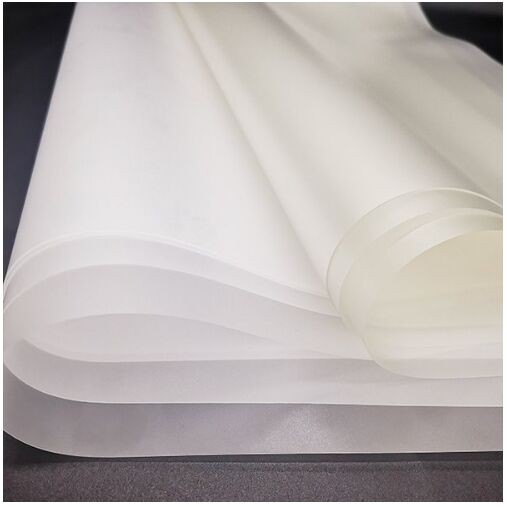

PETG Core White Sheet

• Thickness:100micron~800micron

• White

• A3/ 325mm*480mm

• 300mm*400mm

RFID PET sheet, RFID Inlay sheet,PETG CORE WHITE SHEET,PETG CARD,PETG Offset Sheet

Model:THPETG

Thickness:  0.1mm ~ 0.60mm

Size : A3/500*600mm/295*485mm / 310*485mm Customized etc

Using: Smart card printing layer / Inlay sheet

Suit printing: offset/UV/silk screnn

Apply to making all kinds of plastic cards like,credit card,bank cards, ID,IC cards,Dual interface card，Financial Card,Environmental Card etc

PETG OVERLAY FILM, PETG COATED OVERLAY ,PETG FILM

Model: RJPTO-1802

Kind: Coated /Uncoated/Laserable

Thickness: 0.06mm ~ 0.10mm

Size : A3/A3+/295*480mm /325mm*480mm Customized etc

PETG Coated adhesive overlay film is one side with heat melting glue ,and the other side is smooth without nothing .
Manufacture Method:
1,Put printing core ,Inlay and two overlay together, then put into the laminator, the temperature is determined as per the instruction of the machine , Pls be noticed that all glue sides of both pvc sheets and overlay are put inward.
2,The lamination usually lasts 10-15minutes ,The pressure is 6-8Mpa, The temperature is 110-120°C
3,Cut the card
