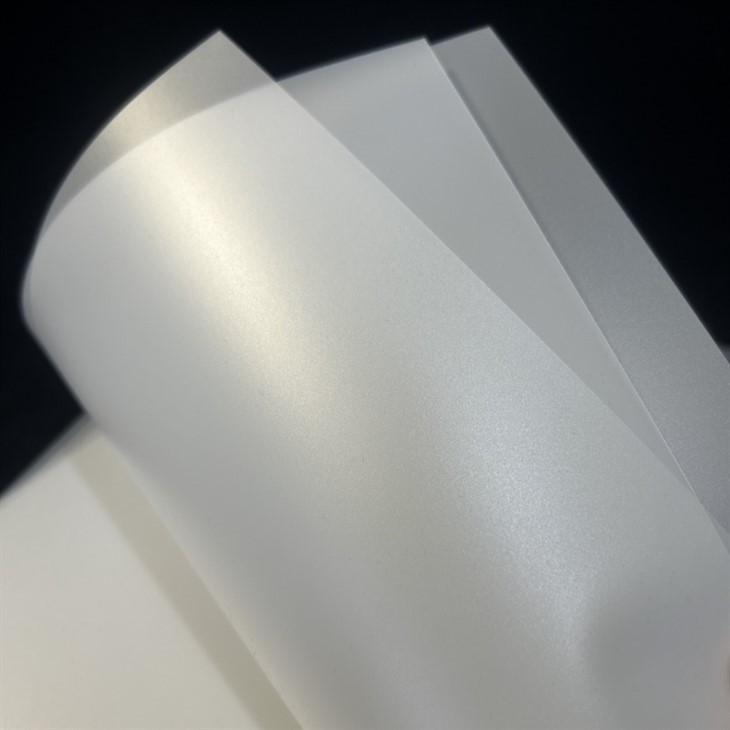

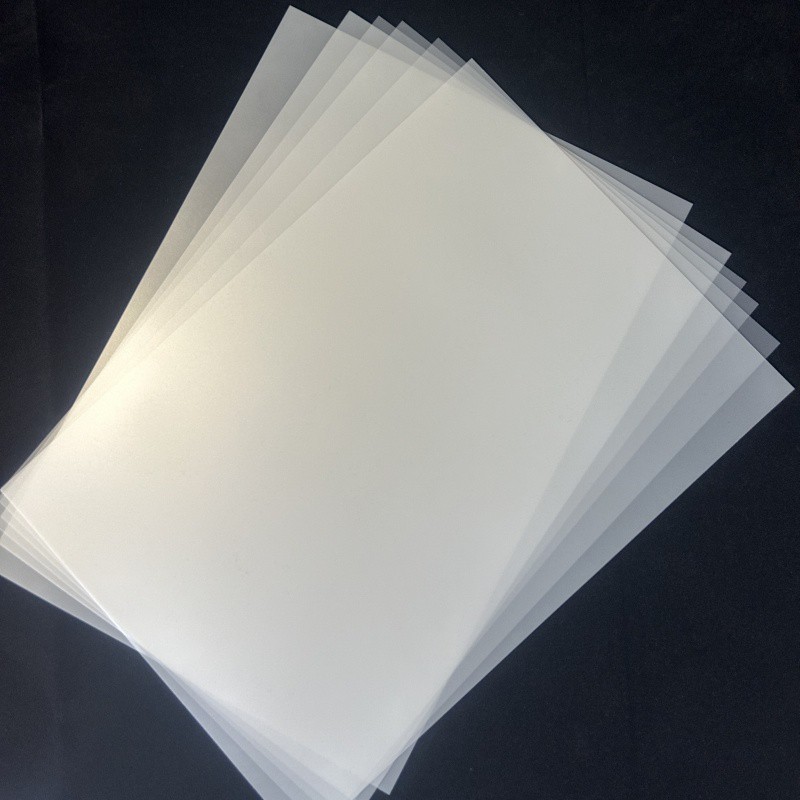

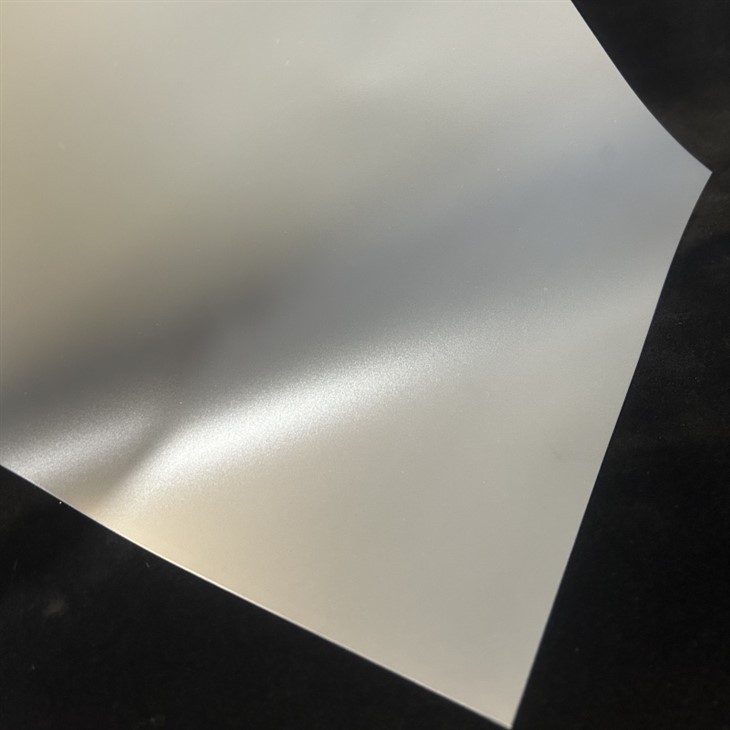

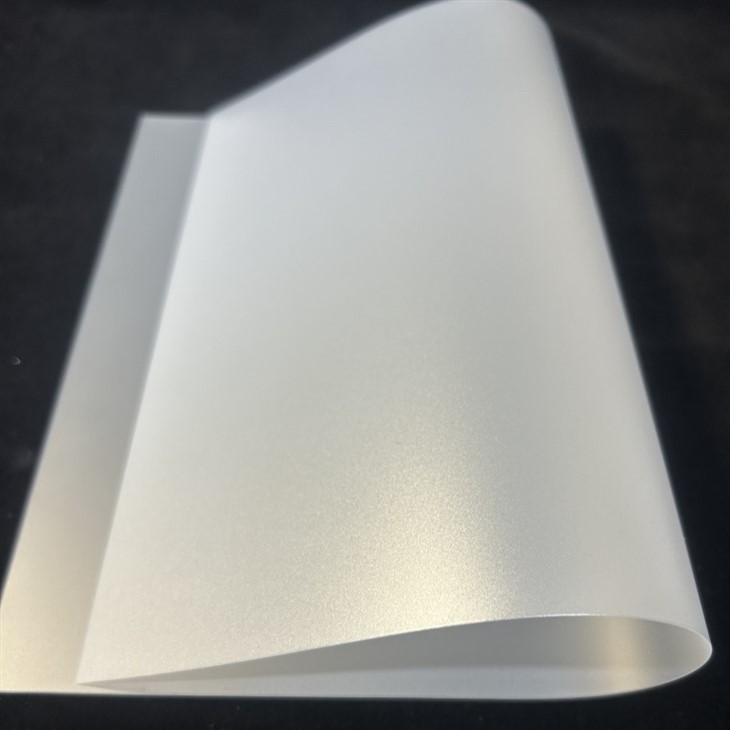

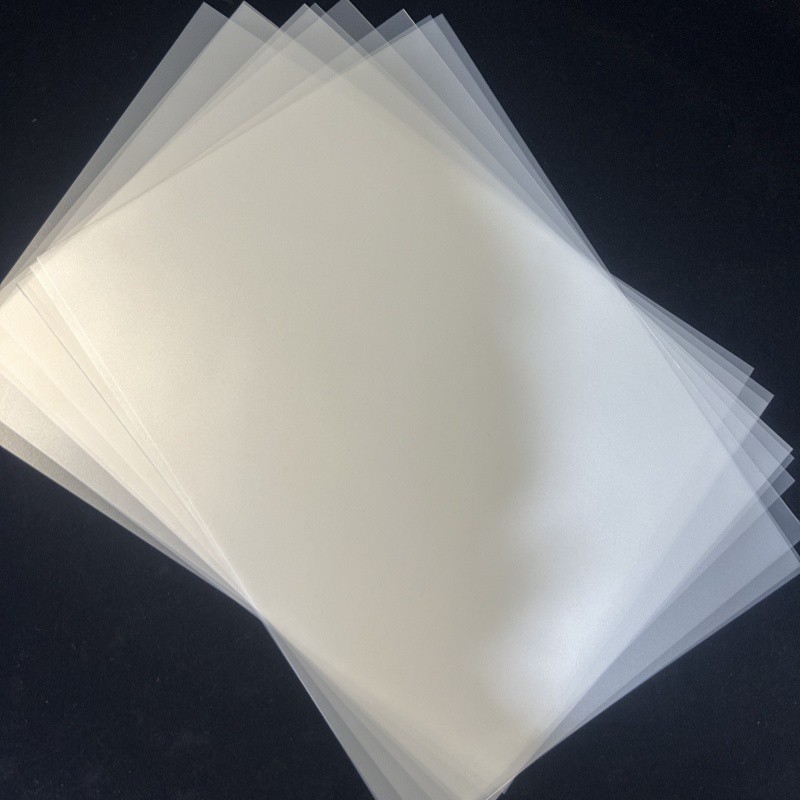

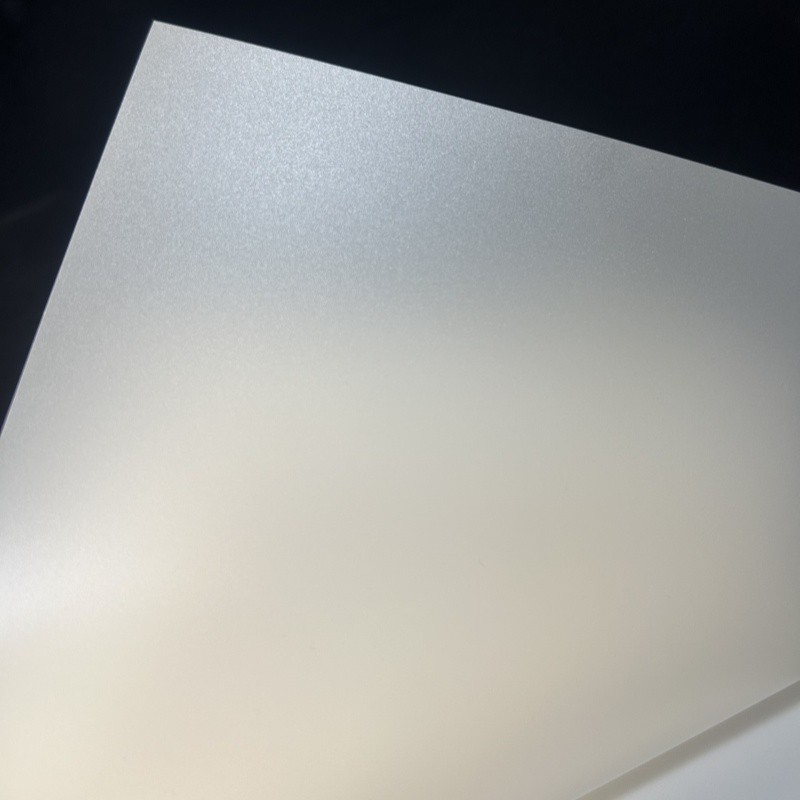

Polycarbonate Overlay Film


Polycarbonate Overlay film with high heat resistance,excellent performance on lamination and printing,high consistency on color and dimensions,multiple anti-counterfeiting techniques achievable,Eco-friendly,which are widely used in printing layer/inlay layer/bearing layer for all kinds of high secure documents and national ID cards,driving license,passport.
  • model: 86-189-544-43606
Products Description



Polycarbonate Overlay film with high heat resistance, excellent performance on lamination and printing, high consistency on color and dimensions, multiple anti-counterfeiting techniques achievable, Eco-friendly, which are widely used in printing layer/ inlay layer/ bearing layer for all kinds of high secure documents and national ID cards, driving license,passport.

26
27

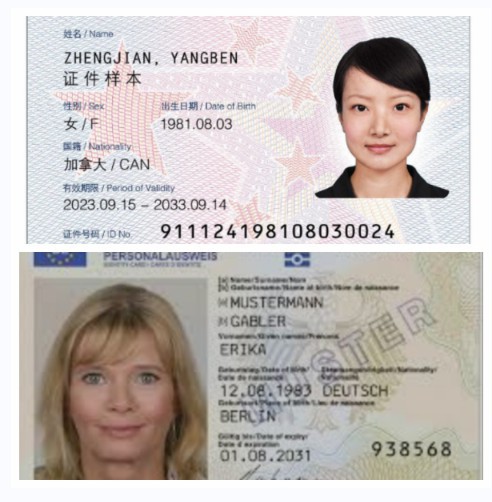

Polycarbonate cards mark a great advancement in secure plastic identification. By intricately burning identity data into the credential, these cards resist physical tampering. Unlike widely available desktop ribbon printers dominating the market for two decades, counterfeiters lack access to the specialized equipment and engravers, which aren't as openly sold. The entry-level cost of engravers, coupled with design and card production complexities, serves as a deterrent. This innovation establishes a formidable barrier against counterfeiting, offering higher security in comparison to traditional card printing methods.

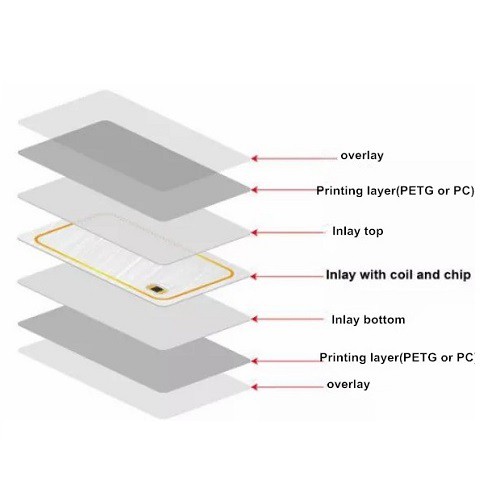

7layers material
ID 5
Specifications of polycarbonate overlay film



Item

Color

Texture

Thickness(micron)

Size in sheet

Size in roll

PC CKC32

Transparent

Fine velvet/matte

50

295mm*485mm 290mm*470mm 300mm*480mm or customized

Width 930mm~1300mm or Customized

60

65

75

100

customized



Typical Property Value



Product name

Polycarbonate overlay film

Type

CKC32

Thickness

50~250micron

Thickness Tolerance

50~100mircron,±8%,

100~250micron,±5%

Squareness

±0.5mm/m

Color

Transparent

Density

1.20±0.02g/cm³

Surface gloss grade 60°

Front side:fine velvet 2.0~7.0 Digits;

Reverse side:fine matte ≤15 Digits

Surface Tension

≥38 Dynes/cm

Light transmittance

≥85%

Vicat Soft Point

148±2

Coefficient of Linear Thermal Expansion

5.8-7.5(x10-5/℃)

Thermal Shrinkage

( at 150℃,30min)

0.5%-0.7%

Water absorption

≤0.2%

Tensile Strength

≥55Mpa (MD/CD)

Break Elongation

≥60% (MD/CD)

Tensile Modulus

>2100Mpa

Dielectric Strength(@10 mils)

1300

Volume Resistivity

@25℃,50%RH

1.00E+16(Ω/square)

Surface Resistivity

@25℃,50%RH

1.00E+15 (Ω-cm)

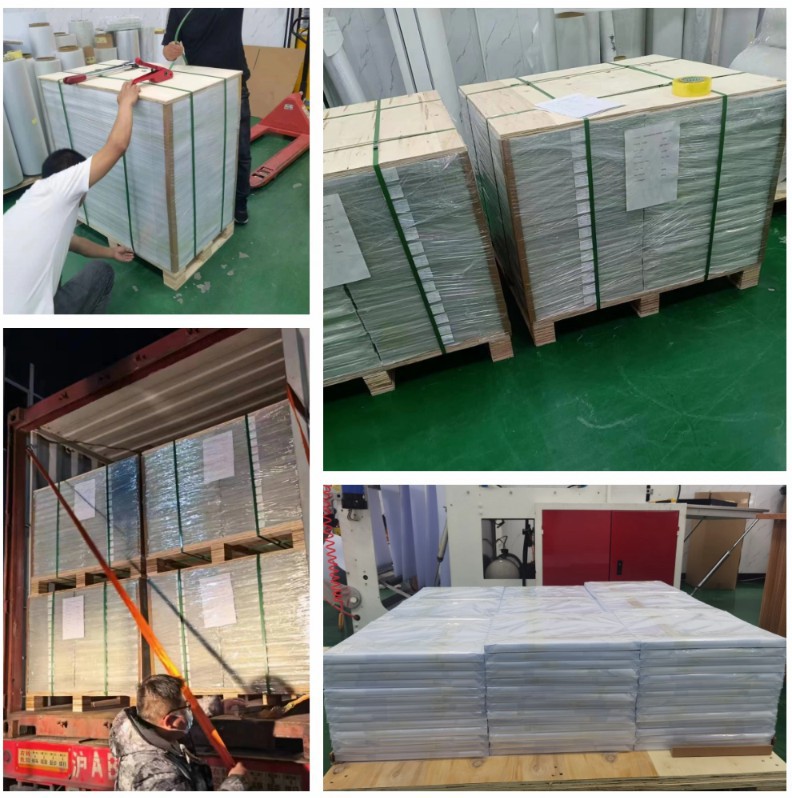

Packing details:



packing1



FAQ



Q1: What products does Jiangsu Zhenzhen New Material Technology Co., Ltd. specialize in?

A: We specialize in the production of advanced materials, including polycarbonate film and PETG films.



Q2. Can I request a customized solution for my specific needs?

A: Yes, we offer customized solutions tailored to meet the unique requirements of our clients. Please contact our sales team to discuss your specific needs.



Q3. What quality standards does your factory adhere to?

A: Our factory strictly adheres to international quality standards. We have implemented rigorous quality control measures throughout the production process to ensure the highest quality of our products.



Q4. What is the production capacity of Jiangsu Zhenzhen New Material Technology Co., Ltd.?

A: Our factory has a strong production capacity that allows us to fulfill both small and large orders efficiently. Please contact our sales team for specific inquiries about production volumes.
