Transparent Polycarbonate Overlay Film

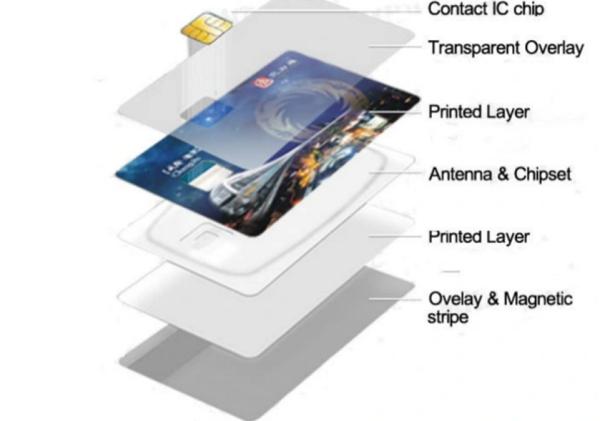

Transparent polycarbonate overlay film, customized in size, is primarily utilized as a protective layer for high-security cards such as bank cards, social security cards, ID cards, and RFID cards. Polycarbonate, a colorless and transparent thermoplastic material, demonstrates outstanding overall properties as an engineering plastic. The PC Film has received ISO9001 quality system certification.
  • model: 86-189-544-43606
Products Description



Transparent polycarbonate overlay film, customized in size, is primarily utilized as a protective layer for high-security cards such as bank cards, social security cards, ID cards, and RFID cards. Polycarbonate, a colorless and transparent thermoplastic material, demonstrates outstanding overall properties as an engineering plastic. The PC Film has received ISO9001 quality system certification.






Transparent Of Polycarbonate Overlay Film




Properties



Product name

Transparent polycarbonate overlay film

Thickness

50~250micron

Thickness Tolerance

50~100mircron,±8%,

100~250micron,±5%

Squareness

±0.5mm/m

Color

Transparent

Density

1.20±0.02g/cm³

Surface gloss grade 60°

Front side:fine velvet 2.0~7.0 Digits;

Reverse side:fine matte ≤15 Digits

Surface Tension

≥38 Dynes/cm

Light transmittance

≥85%

Vicat Soft Point

148±2

Coefficient of Linear Thermal Expansion

5.8-7.5(x10-5/℃)

Thermal Shrinkage

( at 150℃,30min)

0.5%-0.7%

Water absorption

≤0.2%

Tensile Strength

≥55Mpa (MD/CD)

Break Elongation

≥60% (MD/CD)

Tensile Modulus

>2100Mpa

Dielectric Strength(@10 mils)

1300

Volume Resistivity

@25℃, 50%RH

1.00E+16(Ω/square)

Surface Resistivity

@25℃, 50%RH

1.00E+15 (Ω-cm)



Package and delivery



In sheet: PE bags with pallet. In roll: Suspension packing with pallet.




FAQ



Q1. What is the production capacity of your factory?
Our factory, Jiangsu Zhenzhen New Material Technology Co., Ltd. has a production capacity of 600 tons per month.



Q2. Can you customize the Transparent polycarbonate overlay film according to specific requirements?
Yes, we offer customization services to meet unique client specifications, the thickness and sizes are flexible to be tailored.



Q3. What security features are incorporated into your polycarbonate card film?
Our polycarbonate card film includes advanced security features to protect against tampering and counterfeiting.



Q4. How do you ensure the quality of your products?
We adhere to strict quality control measures throughout the manufacturing process. Our products undergo rigorous testing to meet industry standards.



Q5. What is the lead time for orders?
Generally 15~20days, while the exact lead time for orders depends on the quantity and customization requirements.

For further inquiries or to place an order, please reach out to our sales team.
