Products Description

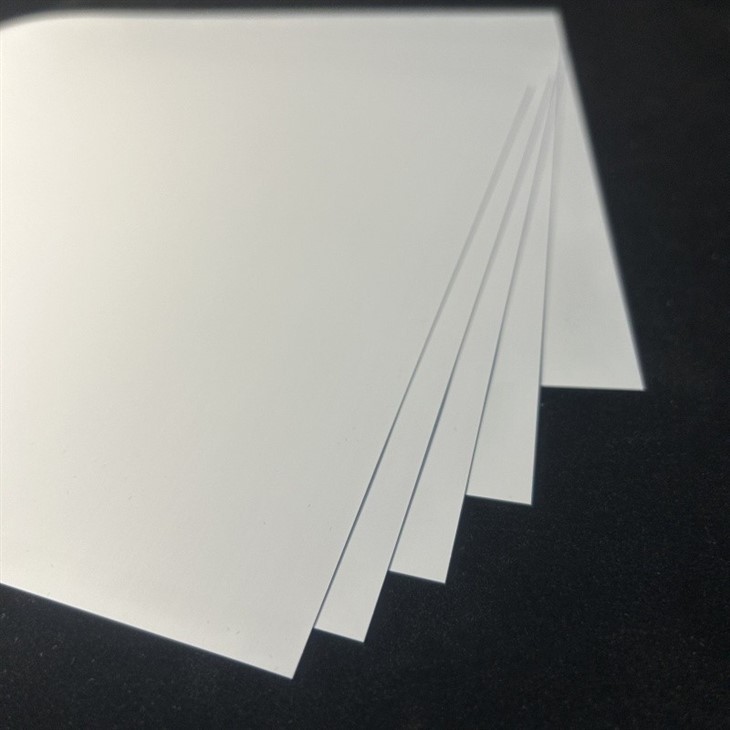

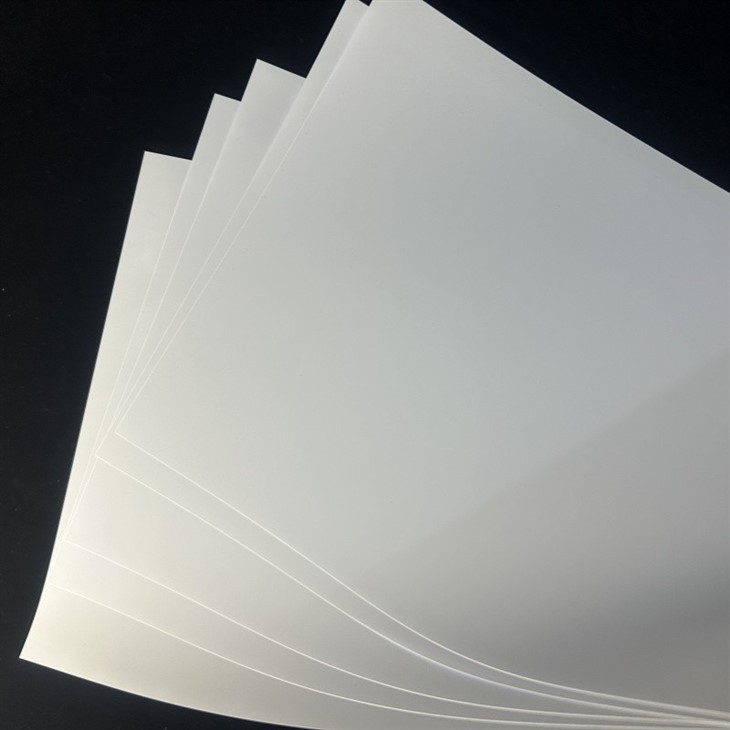

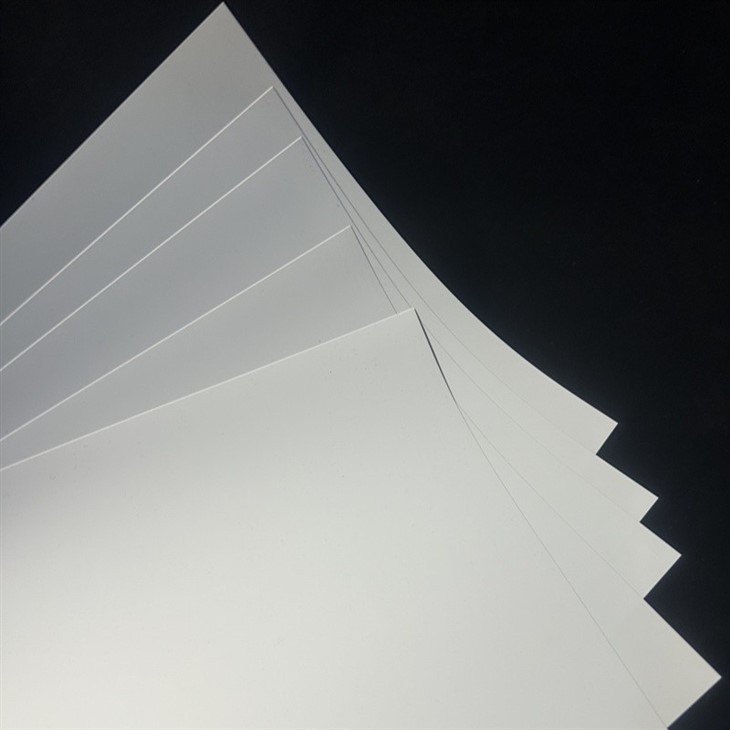

PETG white core for card is used in card based material to make card body.The trait of excellent wear resistance and weather resistance, so that the card is not easy to wear or deformation during long-term use.It's ideal for printing, with clear images and text.The thickness can be made 0.075mm~0.8mm,which is possible to be tailored. Same as sizes. Zhehzhen's item number is PETG CKG32-W.
| Item | Color | Texture | Thickness(micron) | Size in sheet | Size in roll |
| PETG CKG32-W | White | Fine velvet/matte | 75 |
295mm*485mm 290mm*470mm 300mm*480mm or customized |
Width 930mm~1300mm or Customized |
| 100 | |||||
| 120 | |||||
| 150 | |||||
| 160 | |||||
| 180 | |||||
| 200 | |||||
| 220 | |||||
| 250 | |||||
| 300 | |||||
| 320 | |||||
| 330 | |||||
| 75~800 customized |
Advantage and features
Good transparency: PETG card base has excellent transparency, making the appearance of the card more beautiful.
Chemical resistance: PETG core sheet with good resistance to many chemicals, so the card is not easy to corrosion or damage during use.
Strong weather resistance: The property of good weather resistance can maintain stable performance under various climatic conditions.
Recyclability: PETG core sheets are recyclable, environmentally friendly and sustainable.
Customizable: The PETG core layer can be customized according to customer needs, such as adjusting thickness, color,texture etc.
| Product name | PETG white Core sheet | |||
| Type | CKG32W | |||
| Thickness | 0.075~0.8mm | |||
| Thickness Tolerance | ±3.0um | |||
| Size tolerance | ±1.0mm | |||
| Squareness | ±1.2mm/m | |||
| Density | 1.27±0.05g/cm³ | |||
| Appearance | ( 65/10°) | White | ||
| Surface Roughness | Ra | 0.5~1.8um | ||
| Surface tension | Front | ≥36 Dynes/cm | ||
| Back | ≥35 Dynes/cm | |||
| Vicat Soft Point | B50 | 69.0±2.0℃ | ||
| Fluorescence | No | |||
| Light transmittance | ≥85% | |||
| Tensile Strength | MD:≥40.0Mpa | |||
| Break elongation | MD:≥150.0% | |||
| Tensile yield strength | MD:≥38Mpa | |||
| Elongation at yield | MD:≥2.0% | |||
Applications of PETG white core for card
PETG card base core layer is widely used in all kinds of card production, such as ID cards,smart card,bank card,membership cards, discount cards, gift cards, loyalty cards, etc.
Production process of card
PETG white core for card is produced by the processes of extrusion, thermoforming. Firstly, the PETG raw material is heated through an extruder to a molten state and then extruded through a mold into a film of the desired thickness. Next, the film is thermoformed to obtain the desired shape, we slit the PETG core sheet into small size. Finally, the surface of the card is printed to add patterns, text and other information.
